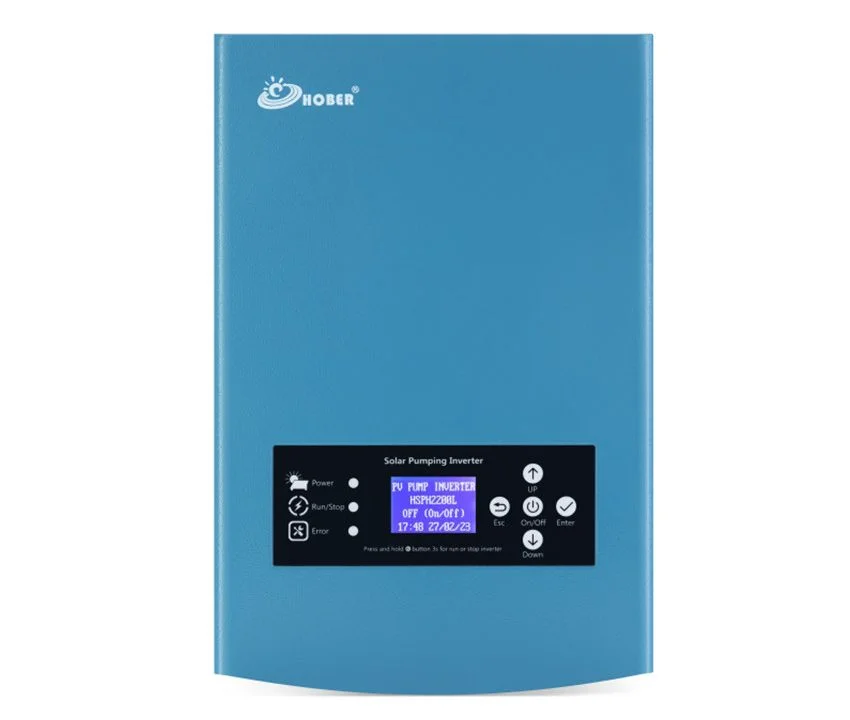

Hober 1.5Kw Solar Pumping inverter (2HP) MPPT Hybrid IP65
KES 56,000
The Hober 1.5Kw Solar Pumping inverter main functions include converting the DC power into Ac Power to drive the pump, and real-time adjust the output frequency to achieve the maximum power point tracking. The inverter is appropriate for single-phase pumps with power requirements below 1500Watts. Output 1/3 phase 220V 50/60Hz Ac input 1 Phase 220V 50/60Hz Solar Pump Inverter Specifications Model HSPH1500LB Solar Panel DC Input Max Voc Voltage 450V Min Vmp Voltage 140V Recommend Vmp Voltage ≥180V Max MPPT Efficiency 99% Max Input Current 16.5 A Number Of Strings 1 Over load Power 3000W Note Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel,without programming AC/Generator Input Voltage 220/240V 1-Phase Max Input Current 14 A Hybrid Mode N AC Output (For Pump, Rerator, Fan Parameters) Max Adapted AC Pump Horse Power 2 HP Max Adapted AC Pump Power 1500W Drive Mode Single Phase(1 phase) and 3Phase (compatibility) Variable Frequency Drive Max Output voltage 220 / 240V Max Output frequency 50 ~ 60 Hz (support program range 15 to 60Hz) Max Output Current 15 A Max Efficiency 97% Water Level Sensor(Borehole / Tank) Yes GPRS SMS Monitor&Controller YES(Optional) Support Remote Monitoring & Control System (SPMCS) YES(Optional) Display LCD display Waterproof IP65 Noise < 50dB Cooling Method Force Cooling by Fan (IP68) Operating Enviornment Operating Environment Temperature -10 to 60℃, Above 60℃ need to derate load Max Humidity 95%RH Using Altitude < 3000m, Above 3000m need to derate load Others Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc Package Size 550*350*285MM Weight 14KG
Features:
- No additional features available.
